Outdoor Signage

Deliver Clear Information

and Content

In All Conditions

IP67 OUTDOOR LCD DISPLAY

* An all-encompassing array of pre-assembled, outdoor-ready features
* Robust IK10 endurance
* Energy-efficient performance
* Excellent and Captivating Visibility
* Operate reliably in virtually any environment

Size

Brightness

  • 2500cd/m²(Standard)
  • 4000cd/m²
  • 1500cd/m²~5000cd/m²(Available)

Product Feature

Outstanding Visibility with Easy Operation
Outstanding Visibility

4,000cd/m2 Direct Sunlight Readable

Designed for outdoor digital advertising usage, these displays feature commercial grade ultra-high brightness panels (4,000cd/m²) that are up to 10 times brighter than domestic televisions. This ensures that content really stands out, even the brightest direct sunlight.

Normal Brightness 250Nits High Brightness 4000Nits

Smart Brightness Control

The auto brightness sensor adjust backlight brightness according to the ambient brightness to save power energy and protect the human eye.

Bright Dark

Auto Brightness Sensor

Wide Viewing Angle

IPS technology provides better control of the liquid crystals, which in turn allows the screen to be viewed at virtually any angle.

178° 178°

Wide Viewing Angle

Visible with Polarized Sunglasses

QWP* technology enables clear visibility even when the viewer is wearing polarized sunglasses.

Landscape & Portrait Orientation Compatible

Operate Reliably in Virtally Any Environment

Optical Bonding Design

With No-air-gap direct optical bonding 7m AR glass technology,inproved readbility and contrast of the display even under intense lighting conditions and wide viewing angles.also can protection against foreigh objects and condensation.

7mm IK 10 Grade IR&UV Blocking AR Glass

No-Air-Gap Direct Bonding

Ultra Resistant to Blackening Defect (up to 110°C)

Thanks to their special ultra-high brightness panels, these displays can withstand surface temperatures up to 110°C without suffering from any blackening defect.This is crucial for outward-facing window displays, which must contend with exposure to direct sunlight.

IK10 Grade Protection

The tempered and laminated front glass ensures optimum protection from outdoor extremities, resulting in minimal to no damage from external impacts.

Secured Protection with IP67 Design

This OHD series is IP67 protected. This means it is designed to withstand water and other weather like damaging effects of the sun, rain, snow, dust and wind. This is an essential feature for outdoor displays.

Energy-Efficient Performance

Through advanced thermal control functionality and a filter-free design, the OHD Series displays operate at reduced energy consumption. An integrated heat exchanger modifies signage resources depending on the environment, and ultimately cuts costs for operators.

Military Grade Heat Dispassion Solution

24/7 Commercial Use

With a commercial grade LCD panel, LED backlight and internal components, these displays have the ability to be in constant use 24/7 for over 70,000 hours. They also have no external buttons or controls to avoid tampering.

Modernize Space With Slim Design
Modernize Design

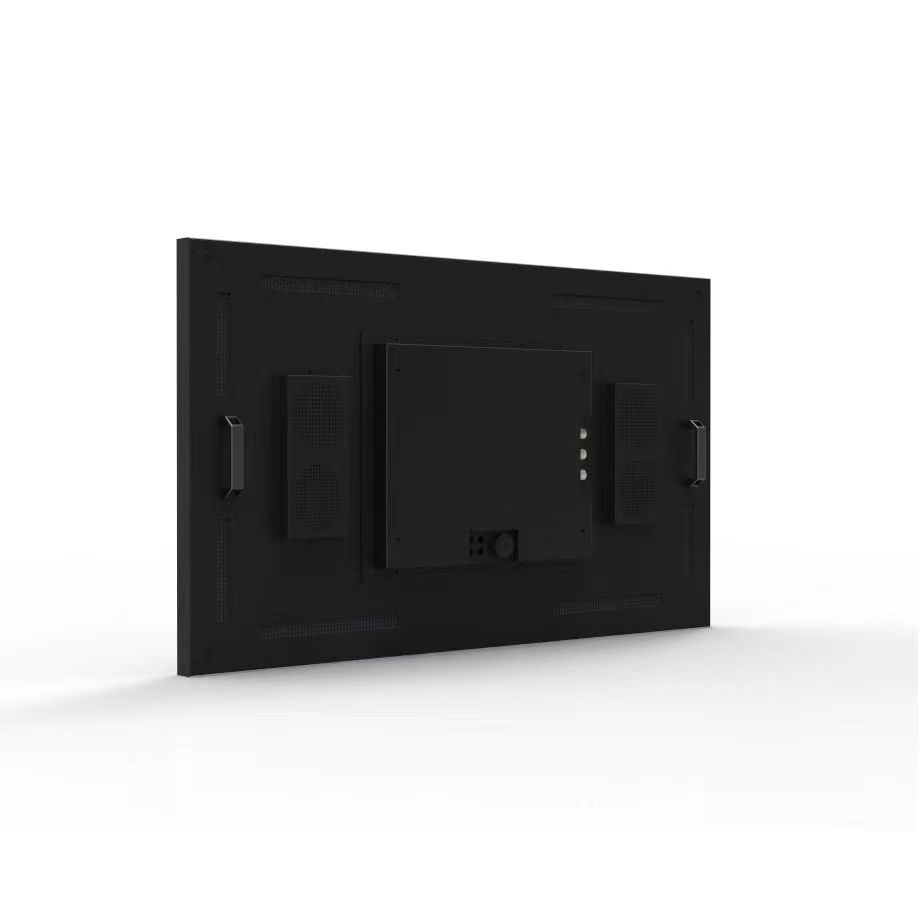

Slim & Robust Design

The slim & robust design of the OHD series signage makes it easy to install, meeting the customer’s needs. This outdoor display can handle most environments and its high brightness will capture your customer’s attention, even under strong and direct sunlight.

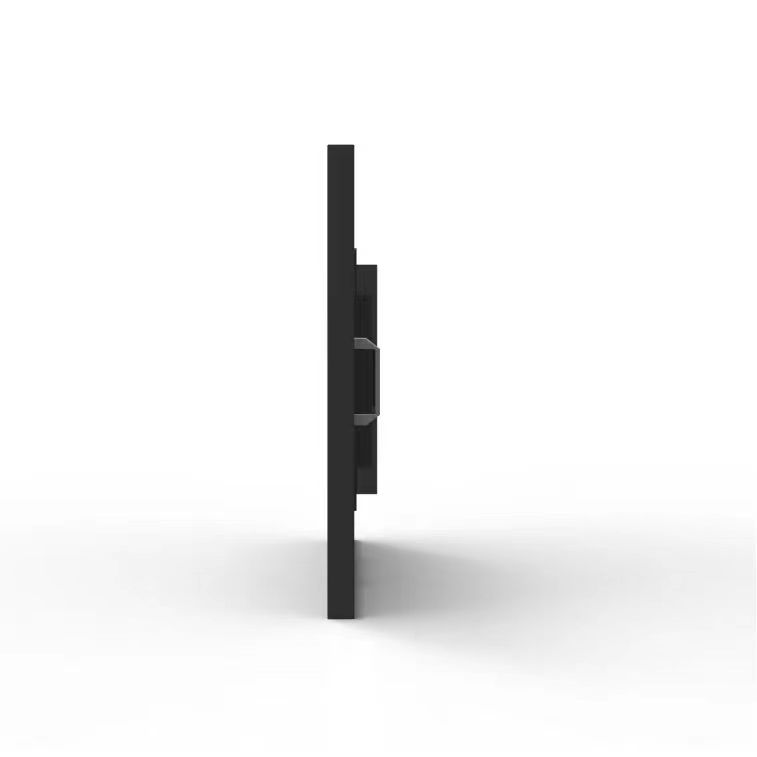

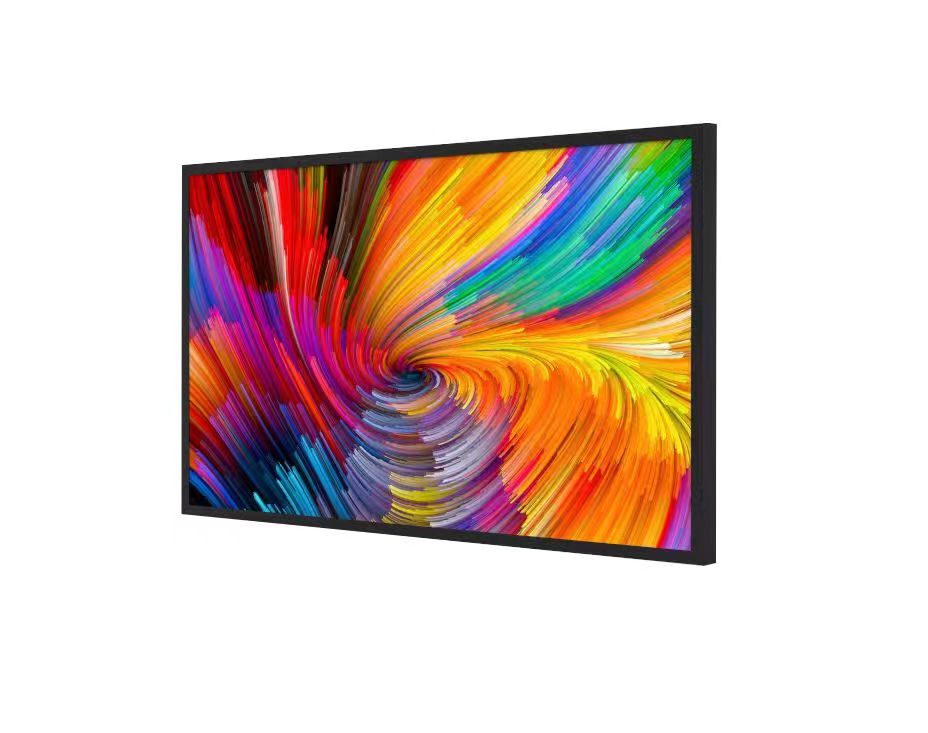

Slim Design

Thanks to its slim depth and elegant narrow even bezel design, this series takes up minimal space, OHD series composed of single display with a light and slim design and it can be easily customized to suit various external environments with no need for separate casing.

User Convenience

Plug and Play

Thanks to the multiple connect input design you can connect your own media player by HDMI/VGA/DP/USB/LAN/RS232 cable as you need, or we can provide Android 7.1 OS with HDMI input version, or Windows OS as you like.

Optional Network Upgrade

For a small charge you can upgrade your screen to be networked, allowing you to connect your screen via Wi-Fi, LAN or 4G, then remotely update it over the internet.

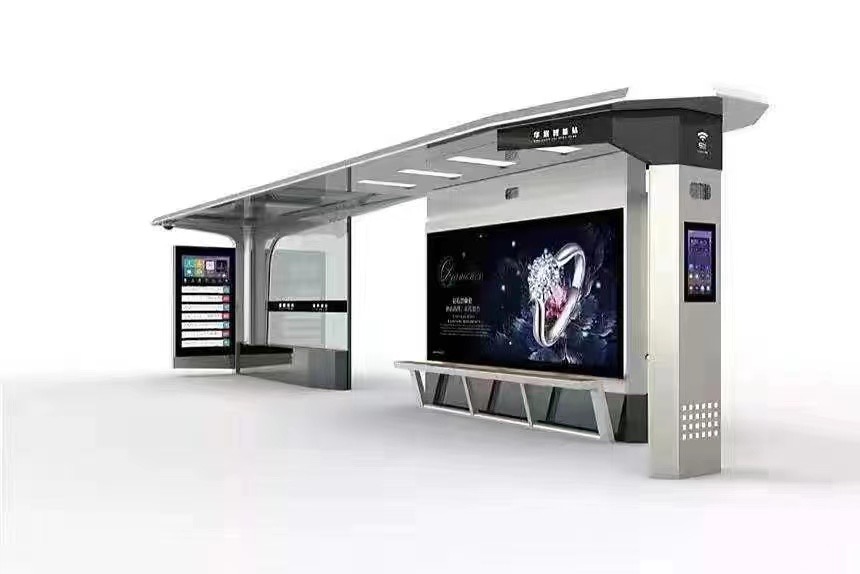

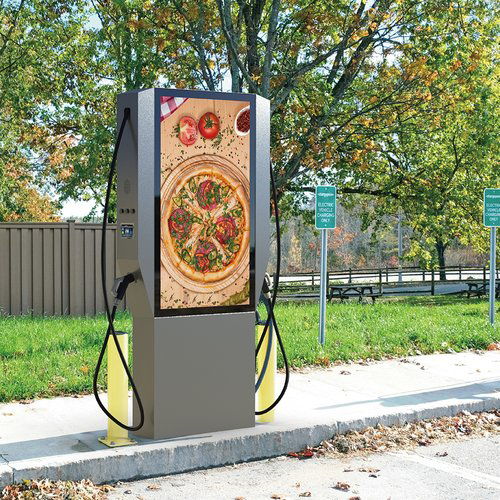

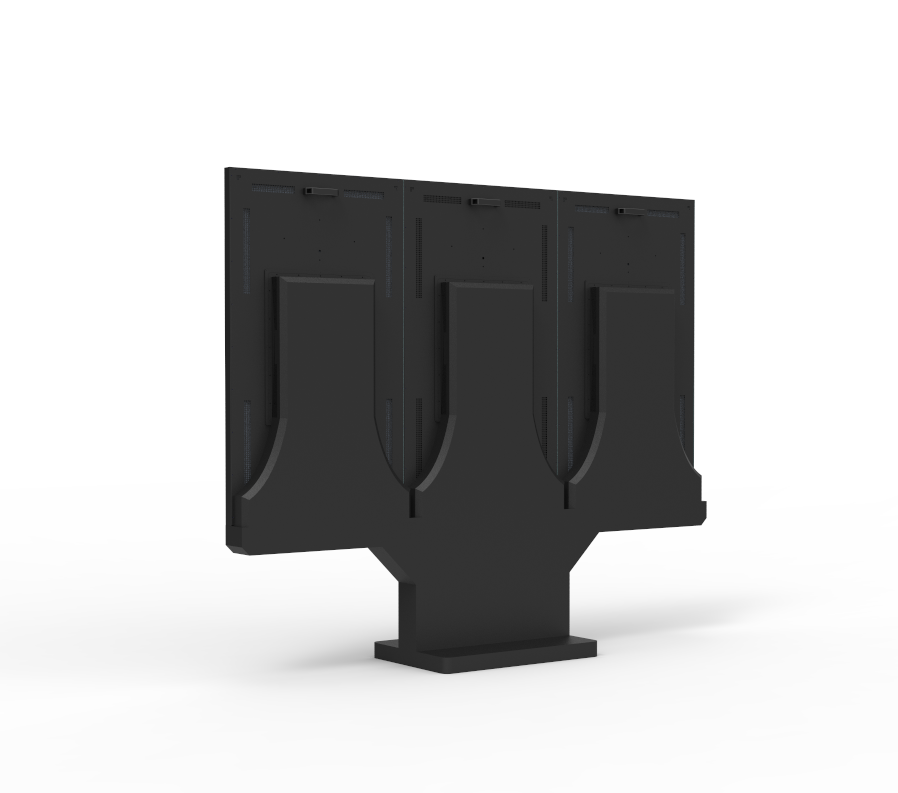

Support Various Installation Way

Easy integration for partner’s customized design,Because the OHD Series is significantly thinner and lighter than previous designs, It is mount-ready and can be more easily customized for a variety of applications.

Wide Size Optional

We can provide widely size optional from 32Inch to 75Inch. also the brightness can be customized from 1500Nits to 6000Nits.

Specs

  • PANEL

    Screen Size
    55''
    Model No.
    OH550-H25
    Brightness
    2500Nits
    Native Resolution
    1920 x 1080 (FHD)
    Blackening Defect Free
    Up to 110°C (230°F)
    Contrast Ratio
    4000:1
    Panel Technology
    IPS, M+ (WRGB)
    Back Light Type
    Direct
    Viewing Angle (H x V)
    178° x 178°
    Response Time (G to G)
    9ms
    Lifetime (Typ)
    50,000 Hrs
    Portrait / Landscape
    Yes/Yes
    Aspect Ratio
    16:9
    Refresh Rate
    60Hz
    Color Gamut
    NTSC 72%
    Color Depth
    8 bit, 16.7 Million colors
    Surface Treatment (Haze)
    3%
    Operation (Hours/Day)
    24/7
    QWP (Quarter Wave Plate)
    Yes
  • CONNECTIVITY

    AV Inputs

    RS232 Input
    Yes, Optional
    Video Inputs
    HDMI, VGA
    Speaker Type
    2W, 8Ω (x2)
    Ethernet Cable
    Yes
    4G LTE
    Yes
  • MECHANICAL

    Bezel Color
    Black
    Bezel Width (T/R/L/B)
    24.4/24.4/24.4/24.4mm
    Dimensions (W x H x D)
    1259.4x730.2x81.8mm
    No. of Handles
    2pcs
    VESA™ Standard Mount Interface
    450x300mm
    Weight
    49kgs
    Material or Structure
    Stainless Steel and Aluminum
    AR Glass Thickness
    7mm
    Carton Dimension
    135x27x96mm
    Packed Weight
    54kgs
  • ENVIRONMENT & POWER

    Ingress Protection
    IP67
    Impact Protection
    IK10
    Operation Temperature
    (w/o Direct Sunlight)

    32°F to 104°F/0°C to 40°C
    Operation Humidity
    10% to 80%
    Power Supply
    100-240Vac, 50/60Hz
    Power Type
    Built-In Power
    Surface Panel Temperature
    110°C
    Operating Temperature
    -20 °C to 50°C
    Operating Humidity
    10% - 80%
    Storage Temperature
    -30 °C to 60°C
    Storage Humidity
    5% - 90%
    Power Consumption
    260W
  • COMPUTER

    Media Formats
    Video (MPG, AVI, MP4, RM, RMVB, TS)
    Audio (MP3, WMA)
    Image (JPG, GIF, BMP, PNG)
    Media Resolution
    1920x1080/1080x1920
    CPU
    Quad-Core ARM Cortex A17, 1.6GHz
    GPU
    Quad-Core ARM Mali-T764
    USB
    1 x USB (OTG/HOST)
    1 x USB (HOST)
    LAN
    100M/1000M Ethernet
    (Network Version Only)
    Wi-Fi
    802.11b/g/n
    (Network Version Screen Only)
    RAM
    DDR3 2GB
    OS
    Android 7.1
    Graphic Engine
    OpenGL ES 1.1/2.0/3.0/3.1
    OpenCL 1.1
    Renderscript, Direct3D 11.1
  • WARRANTY & OTHER

    Warranty
    3 Year Limited
    CE (Regulatory)
    Yes
    FCC (Regulatory)
    Class "A"
    UKCA
    Yes
    Rohs (Environmental)
    Yes
    IK10 Certificates
    Yes
    IP67 Certificates
    Yes
    Temperature Test
    Yes
  • SPECIAL FEATURES

    Temperature Sensor
    Auto-Brightness Sensor
    Cooling Fan
    Energy Saving
    Smart Energy Saving
    File Play with USB
    Internal Memory (8 GB)
    Easy Brightness Control
    Content Scheduling
