IP67/IP65 OUTDOOR DISPLAY
>>
IP65 OUTDOOR LCD DISPLAY

IP65 OUTDOOR LCD DISPLAY

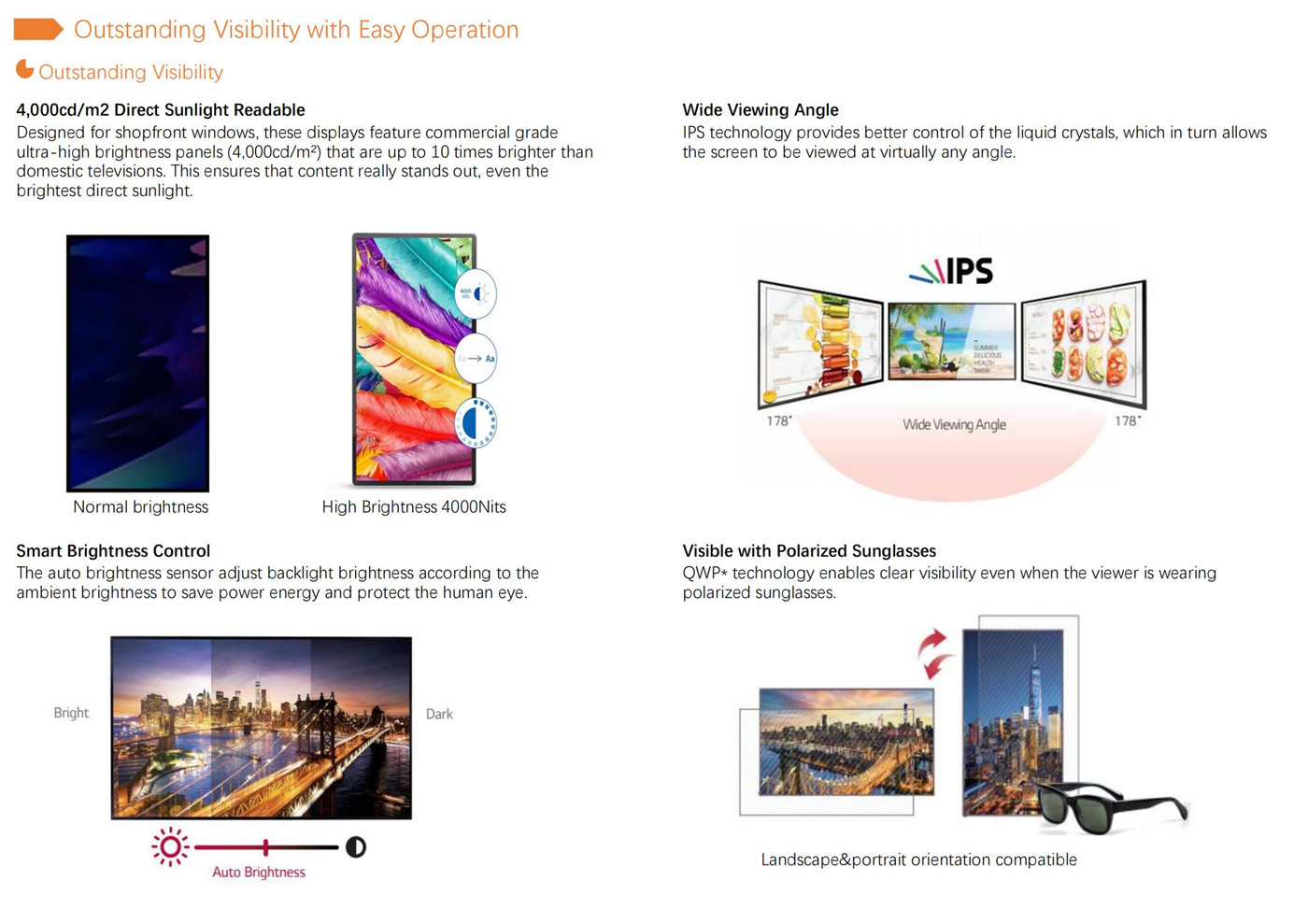

1、4,000cd/m² Direct Sunlight Readable
2、Wide Viewing Angle
3、Smart Brightness Control
4、Visible with Polarized Sunglasses

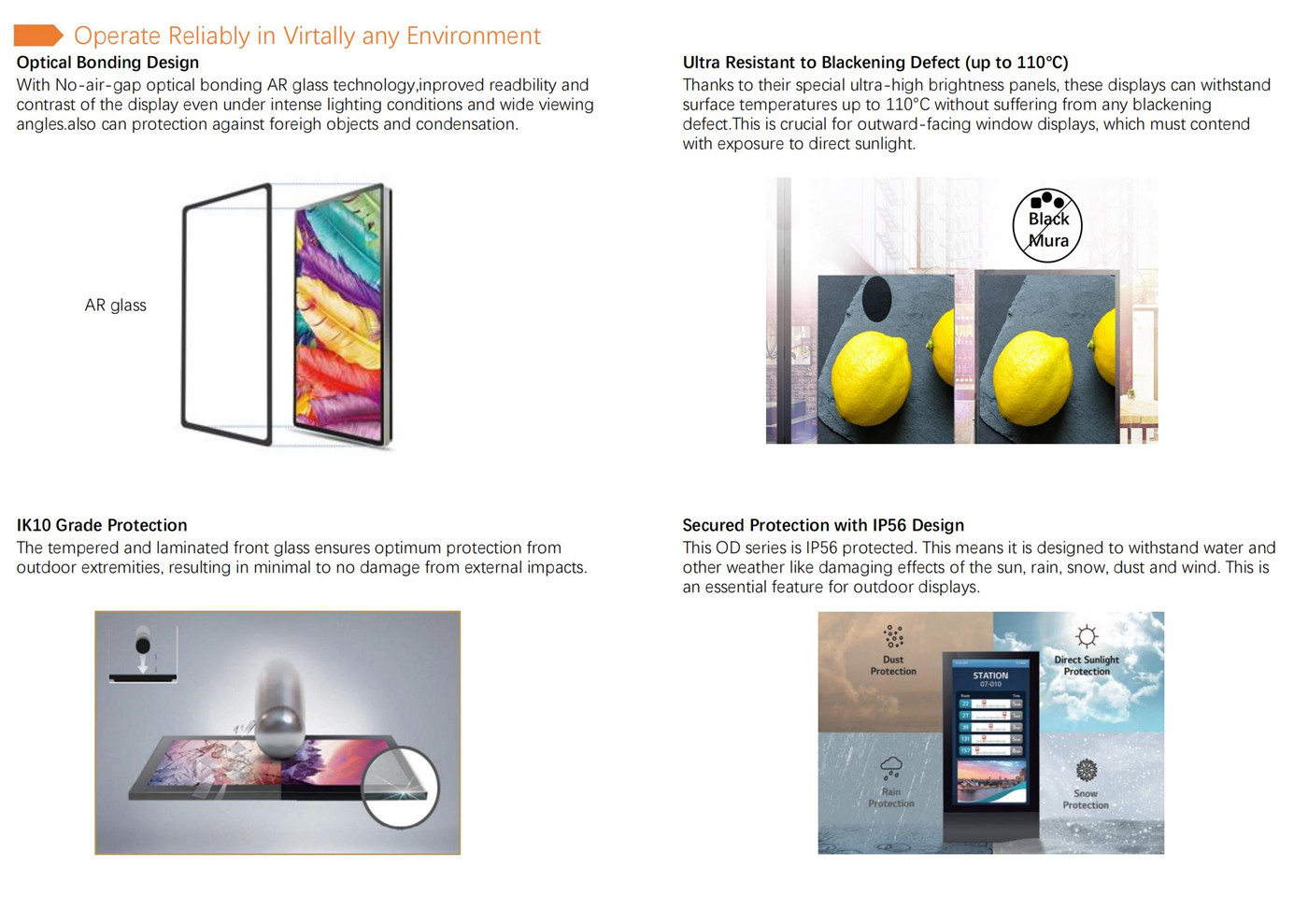

5、Optical Bonding Design
6、Ultra Resistant to Blackening Defect (up to 110°C)
7、IK10 Grade Protection

Size

Brightness

  • 4000cd/m²(Standard)
  • 1500cd/m²~5000cd/m²(Customized)
INQUIRY TO BUY
Download Information
IP65 OUTDOOR LCD DISPLAY

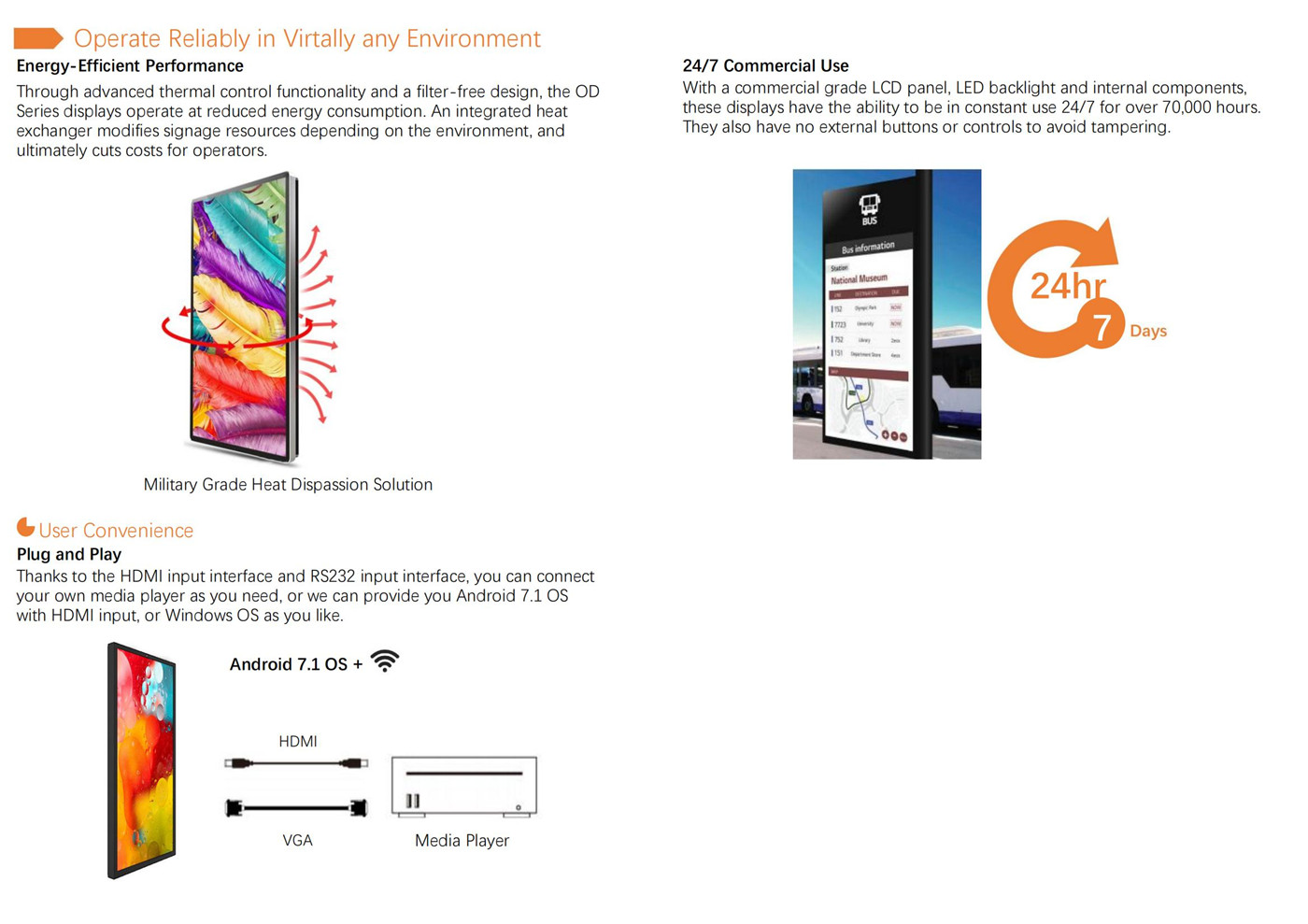

Product Feature

Specs

  • PANEL

    Screen Size
    49''
    Model No.
    OD49H40
    Brightness
    4,000 nits (Standard)
    Brightness Optional
    1500cd/m² ~ 5000 cd/m²
    Native Resolution
    1920 x 1080 (FHD)
    Blackening Defect Free
    Up to 110°C (230°F)
    Contrast Ratio
    4000:1
    Panel Technology
    IPS, M+ (WRGB)
    Back Light Type
    Direct
    Viewing Angle (H x V)
    178° x 178°
    Response Time (G to G)
    9ms
    Lifetime (Typ)
    50,000 Hrs
    Portrait / Landscape
    Yes/Yes
    Aspect Ratio
    16:9
    Refresh Rate
    60Hz
    Color Gamut
    NTSC 72%
    Color Depth
    8 bit, 16.7 Million colors
    Surface Treatment (Haze)
    3%
    Operation (Hours/Day)
    24/7
    QWP (Quarter Wave Plate)
    Yes

  • CONNECTIVITY

    AV Inputs

    RS232 Input
    Yes, Optional
    Video Inputs
    HDMI, VGA

  • Environment

    Operating Temp.
    0 ~ 50 °C
    Storage Temp.
    -20 ~ 60 °C

  • COMPUTER

    Media Formats
    Video (MPG, AVI, MP4, RM, RMVB, TS)
    Audio (MP3, WMA)
    Image (JPG, GIF, BMP, PNG)
    Media Resolution
    1920x1080/1080x1920
    CPU
    Quad-Core ARM Cortex A17, 1.6GHz
    GPU
    Quad-Core ARM Mali-T764
    USB
    1 x USB (OTG/HOST)
    1 x USB (HOST)
    LAN
    100M/1000M Ethernet
    (Network Version Only)
    Wi-Fi
    802.11b/g/n
    (Network Version Screen Only)
    RAM
    DDR3 2GB
    OS
    Android 7.1
    Graphic Engine
    OpenGL ES 1.1/2.0/3.0/3.1
    OpenCL 1.1
    Renderscript, Direct3D 11.1

  • ACCESSORIES

    Included
    Remote Control
    User Manual
    Optional
    Wall Mount
    Floor Stand/Trolley
    Ceiling Mount
    Table Stand
    Included
    Remote Control
    Ceiling Mounted Bracket
    User Manual
    Optional
    Floor Stand Bracket

  • WARRANTY & OTHER

    Warranty
    3 Year Limited
    CE (Regulatory)
    Yes
    FCC (Regulatory)
    Class "A"
    UKCA
    Yes
    Rohs (Environmental)
    Yes
