WINDOW FACING DISPLAY
>>

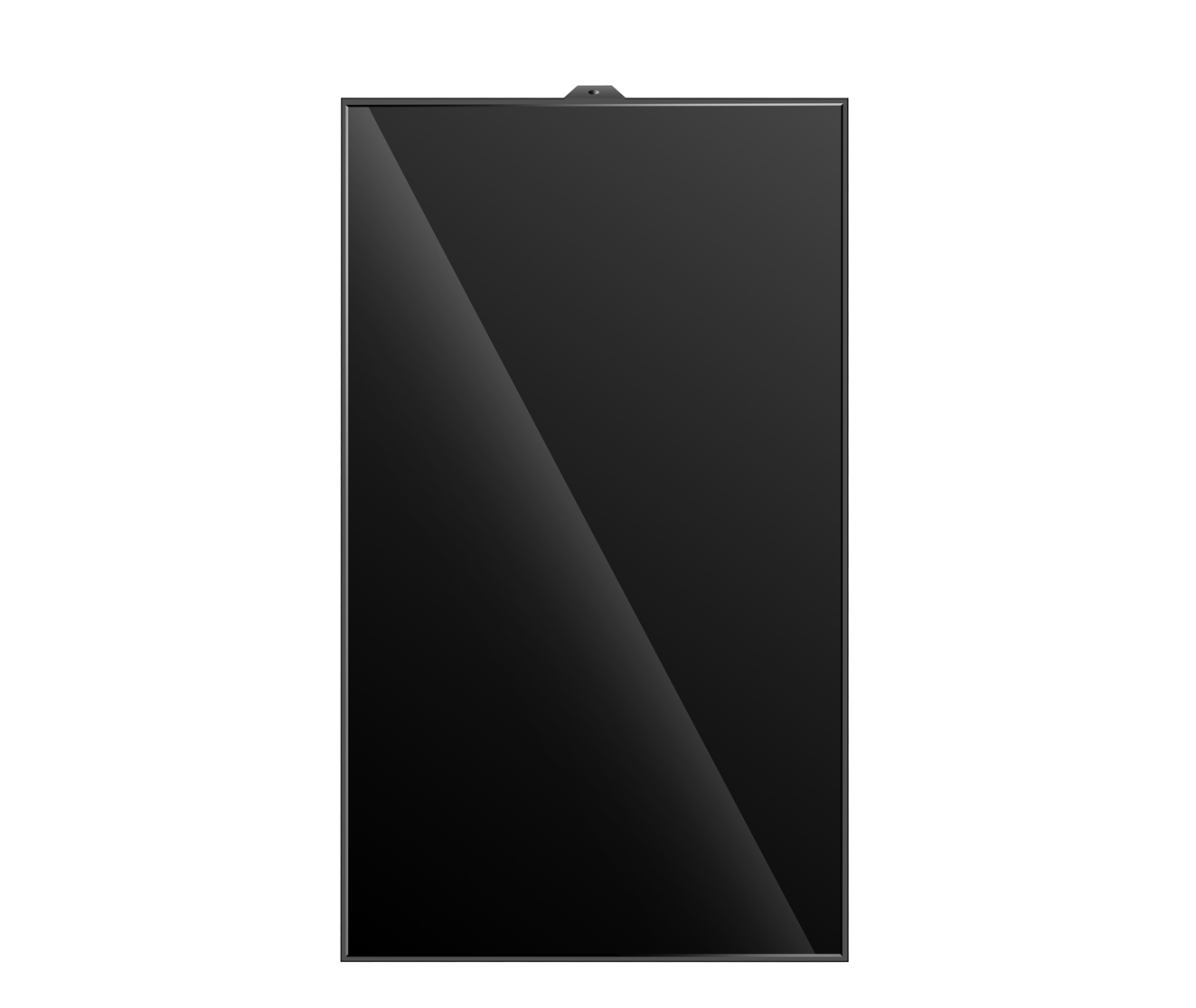

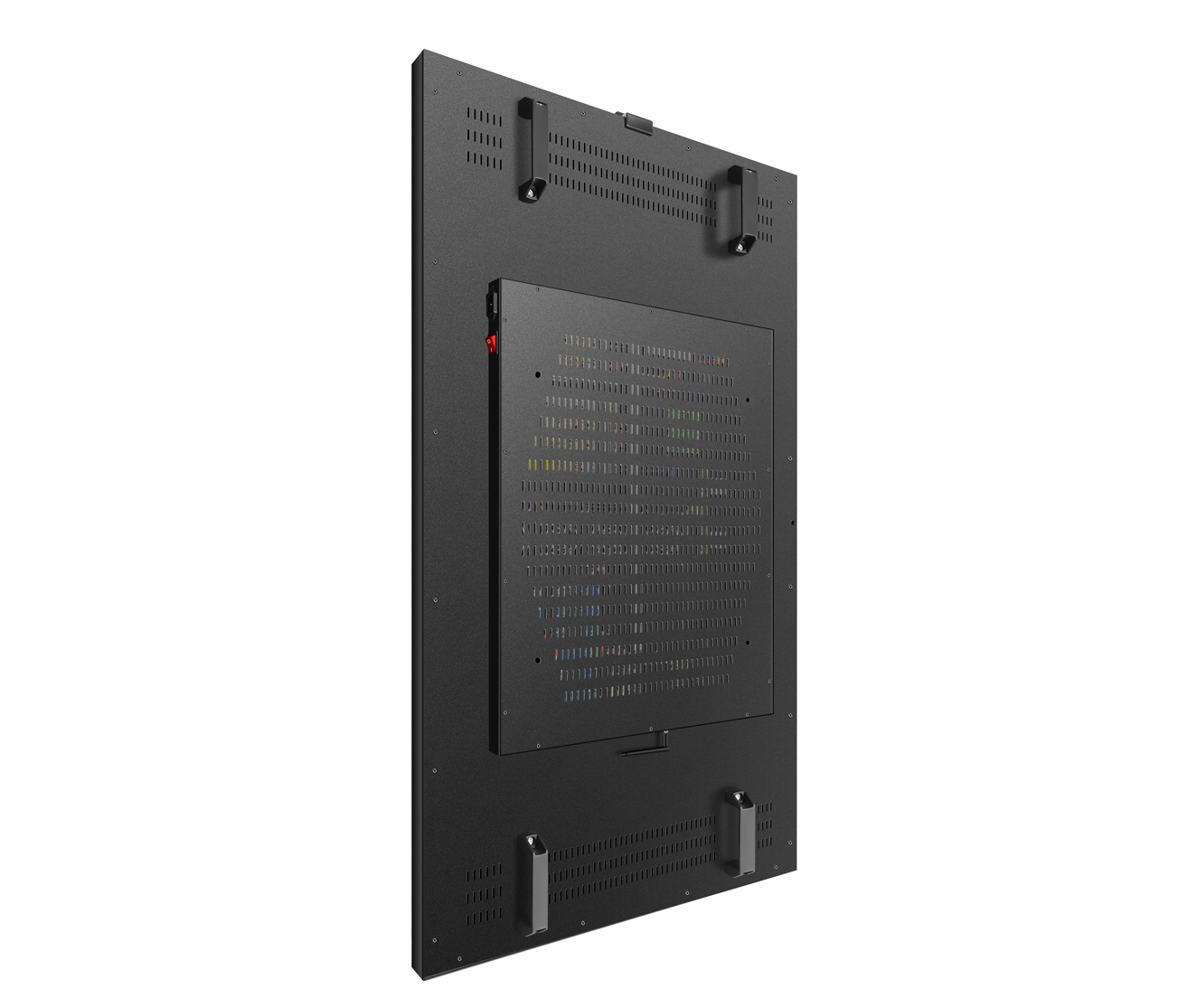

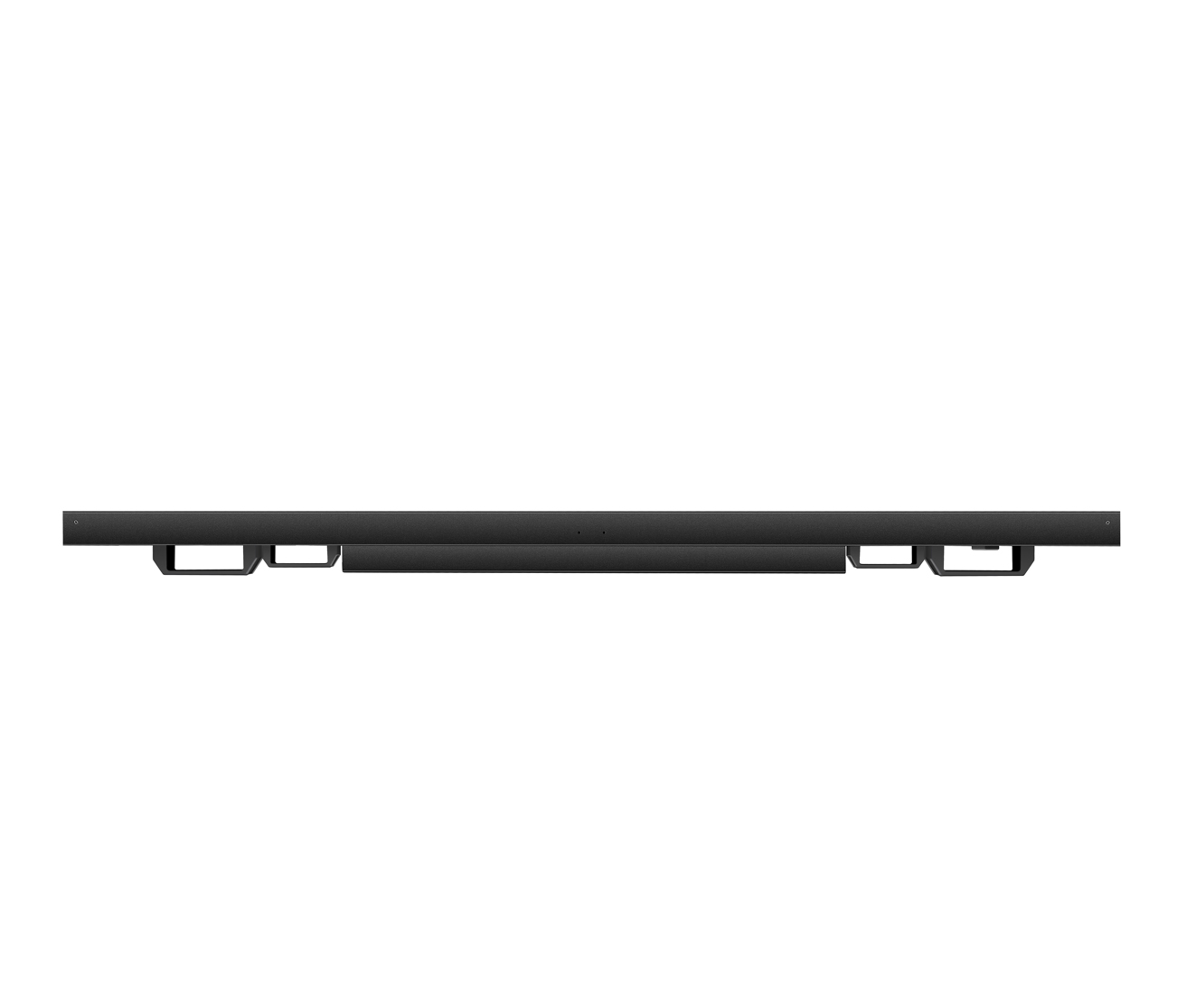

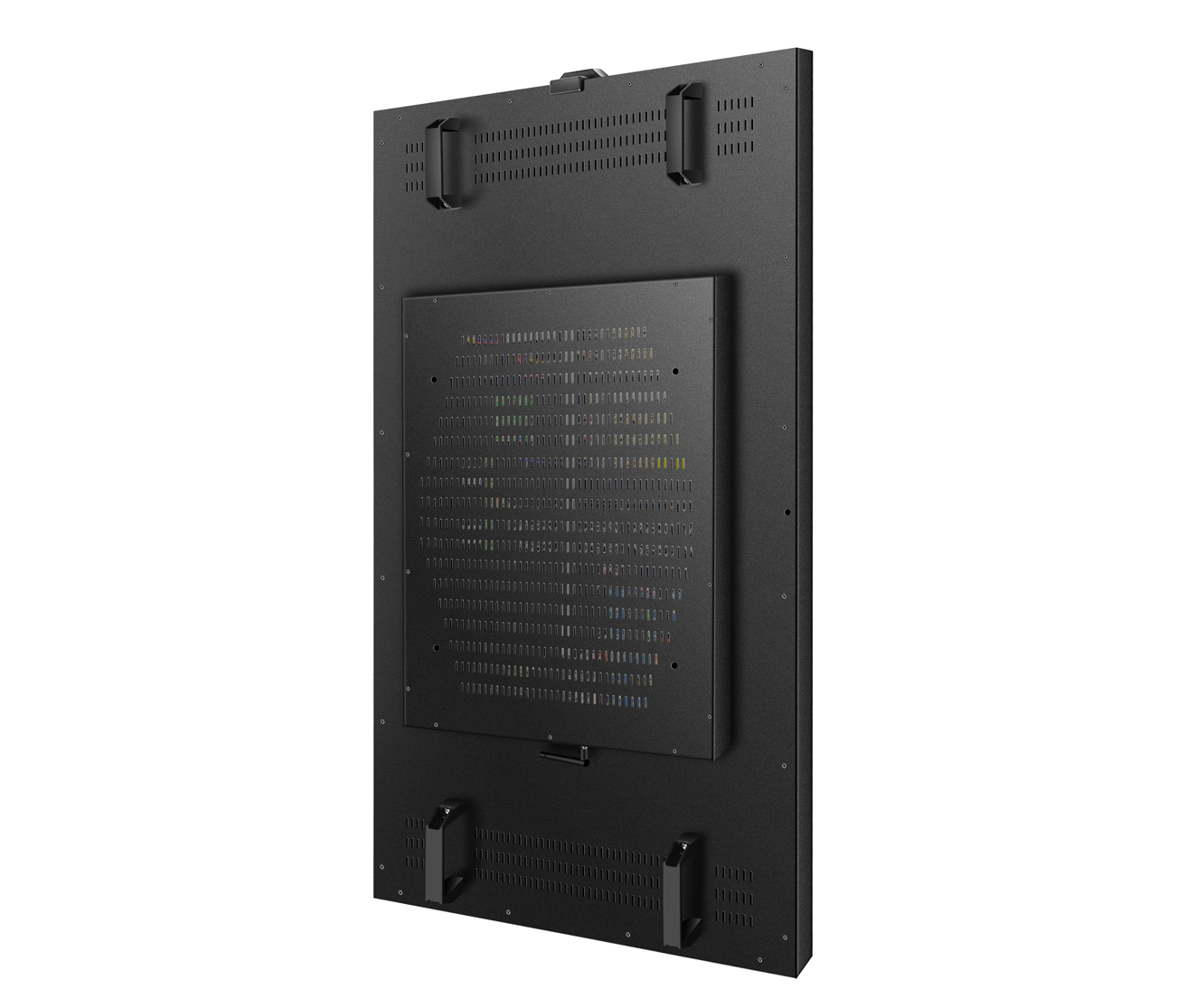

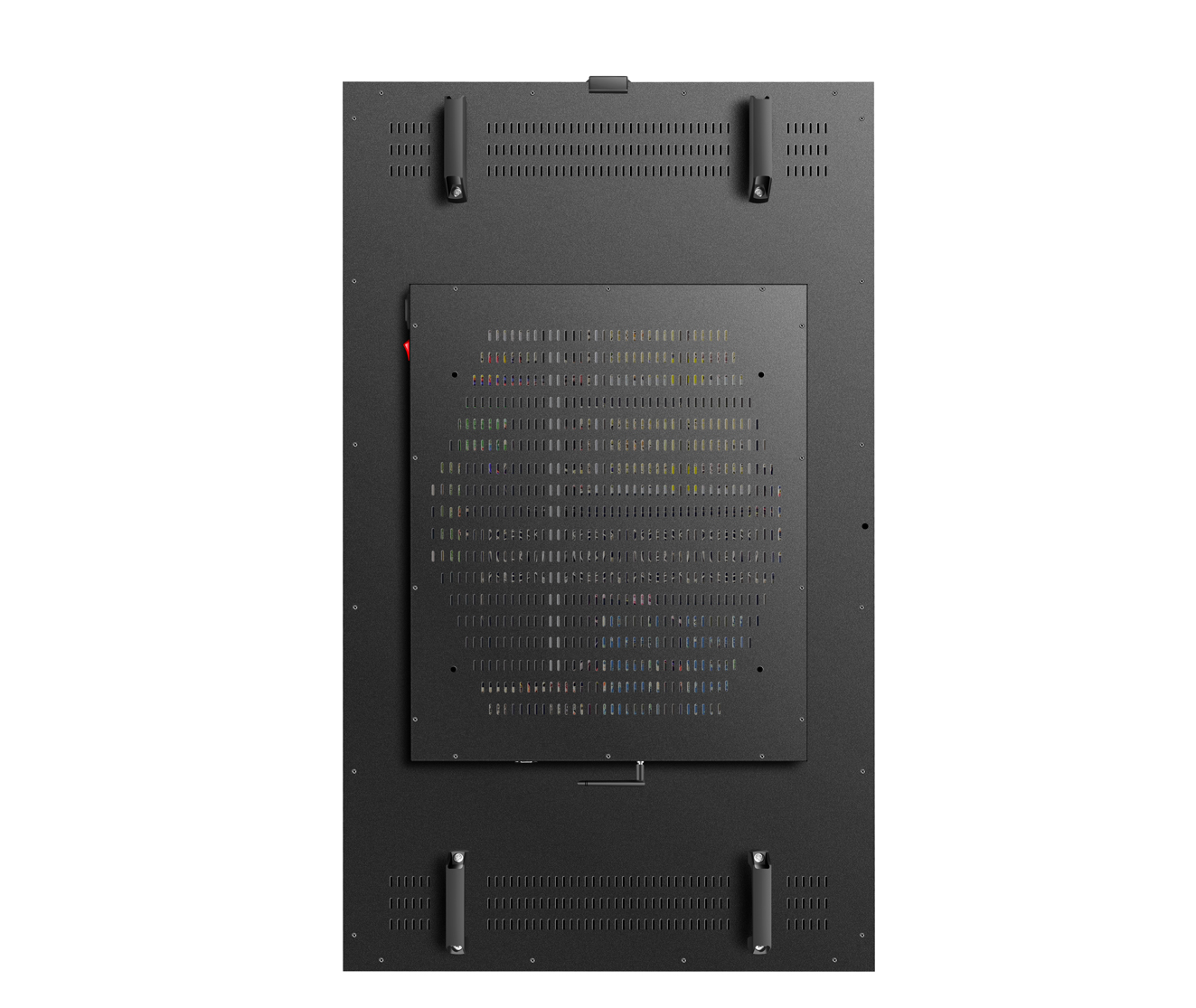

SINGLE SIDE WINDOW FACING DISPLAY

SINGLE SIDE WINDOW FACING DISPLAY

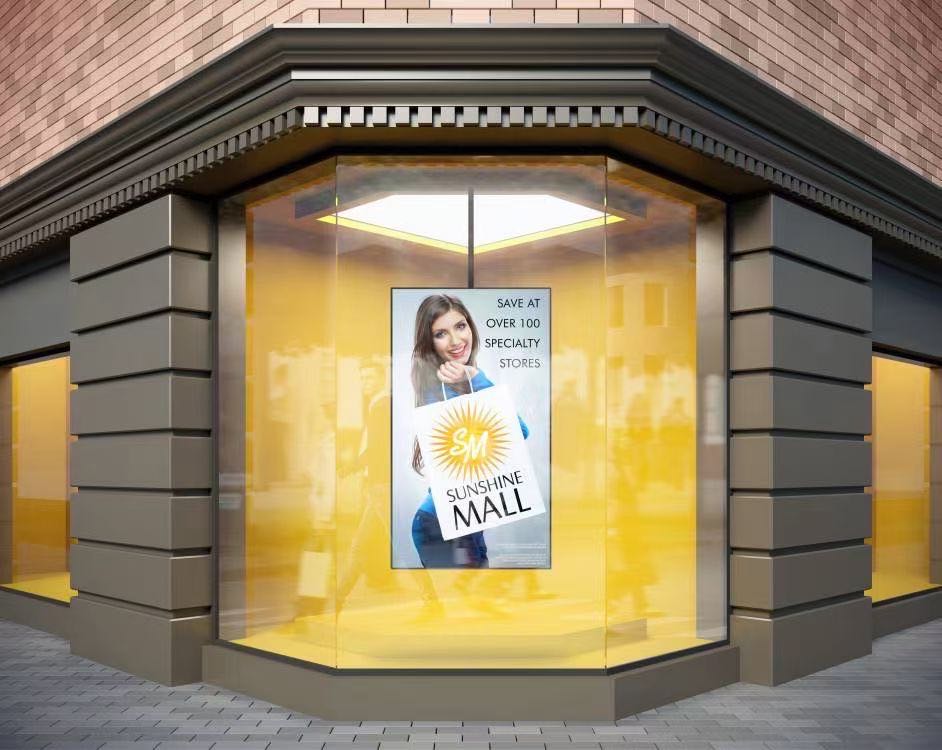

Designed for shopfront windows, these displays feature commercial grade
ultra- high brightness panels (3,000cd/m2) that are up to 10 times brighter than
domestic televisions. This ensures that content really stands out, even the
brightest direct sunlig

Size

Brightness

  • 1500cd/m²
  • 2500cd/m²
  • 3000cd/m²(Typical)
  • 4000cd/m²
INQUIRY TO BUY
Download Information
SINGLE SIDE WINDOW FACING DISPLAY

Product Feature

Specs

  • PANEL

    Screen Size
    32''
    Part No.
    UHB320H30
    Brightness
    4,000 nits (Standard)
    Brightness Optional
    1500cd/m² ~ 5000 cd/m²
    Native Resolution
    1920 x 1080 (FHD)
    Blackening Defect Free
    Up to 110°C (230°F)
    Contrast Ratio
    1,000:1
    Panel Technology
    IPS, M+ (WRGB)
    Back Light Type
    Direct
    Viewing Angle (H x V)
    178° x 178°
    Response Time (G to G)
    9ms
    Lifetime (Typ)
    50,000 Hrs
    Portrait / Landscape
    Yes/Yes
    Aspect Ratio
    16:9
    Refresh Rate
    60Hz
    Color Gamut
    NTSC 72%
    Color Depth
    8 bit, 16.7 Million colors
    Surface Treatment (Haze)
    3%
    Operation (Hours/Day)
    24/7
    QWP (Quarter Wave Plate)
    Yes

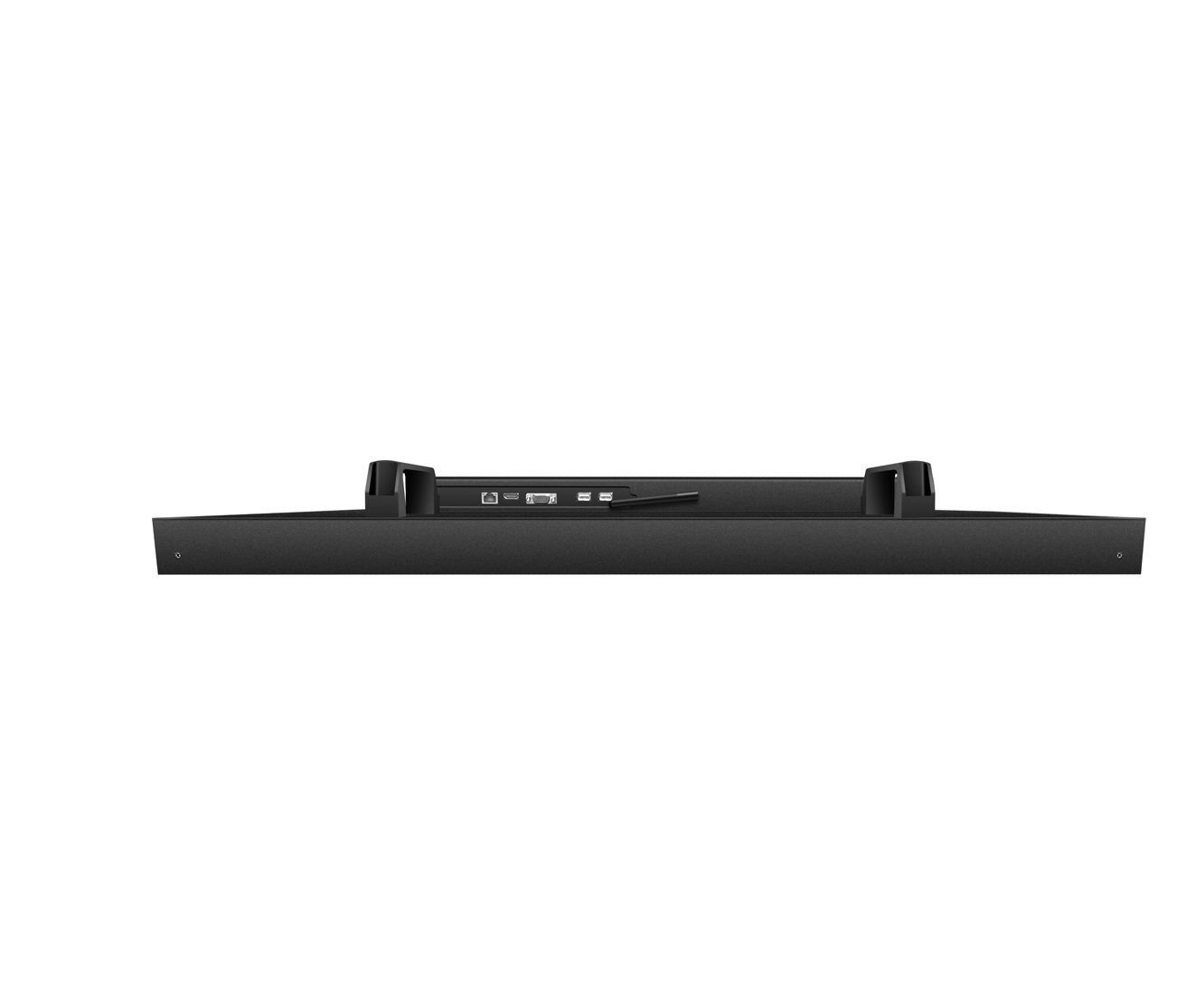

  • CONNECTIVITY

    AV Inputs

    Video Inputs
    HDMI, VGA
    Audio
    Audio Socket (3.5mm)
    Speaker Type
    2W, 8Ω (x2)

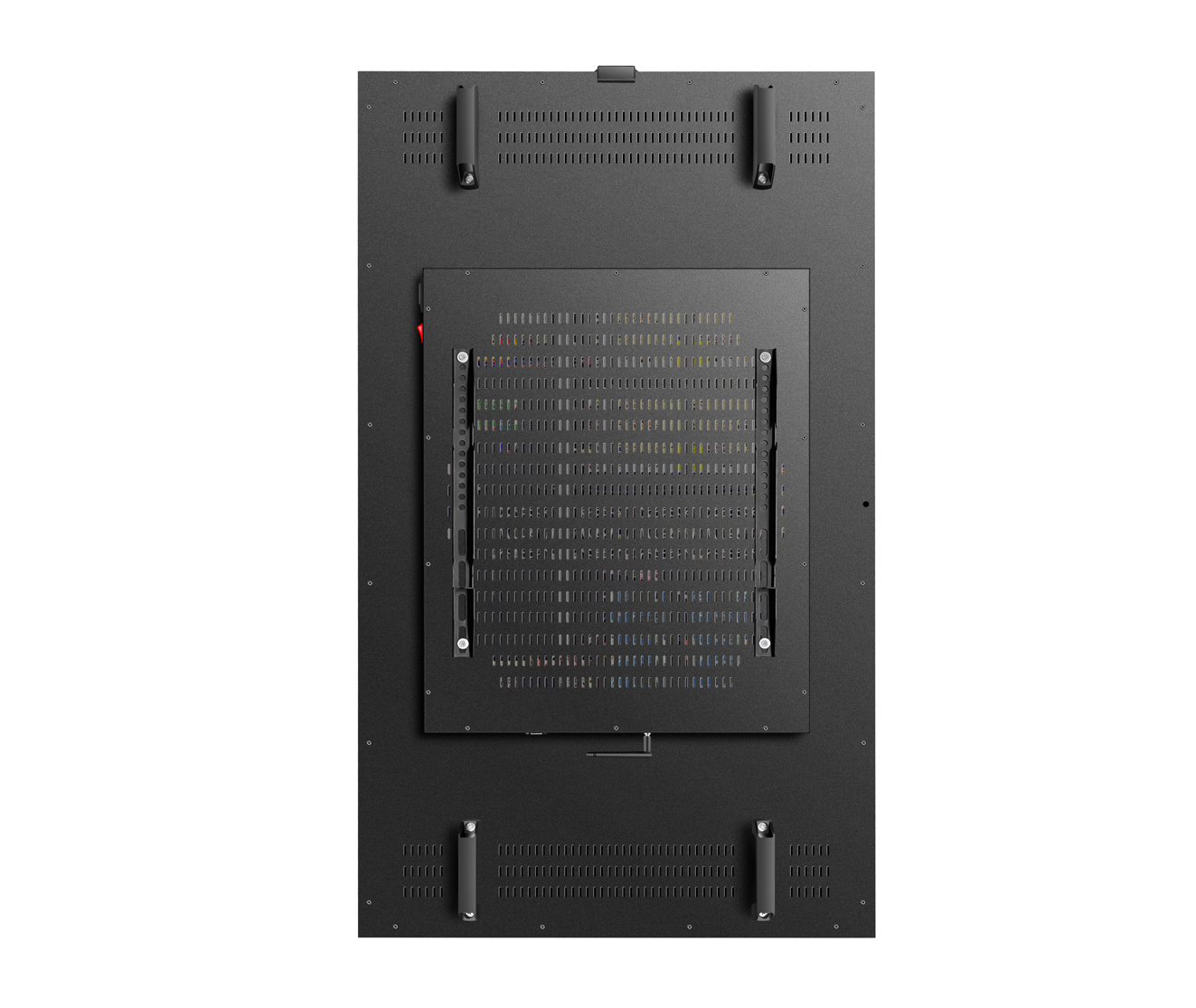

  • MECHANICAL

    Bezel Color
    Black
    Bezel Width (T/R/L/B)
    10.5/10.5/10.5/10.5mm
    No. of Handles
    4pcs
    Material of Structure
    Alluminum
    VESA™ Standard Mount Interface
    200 x 200 4-M6 L8
    Dimensions (W x H x D)
    722.8 x 417.3 x 74.7mm
    Weight
    19.84 lbs / 9kg

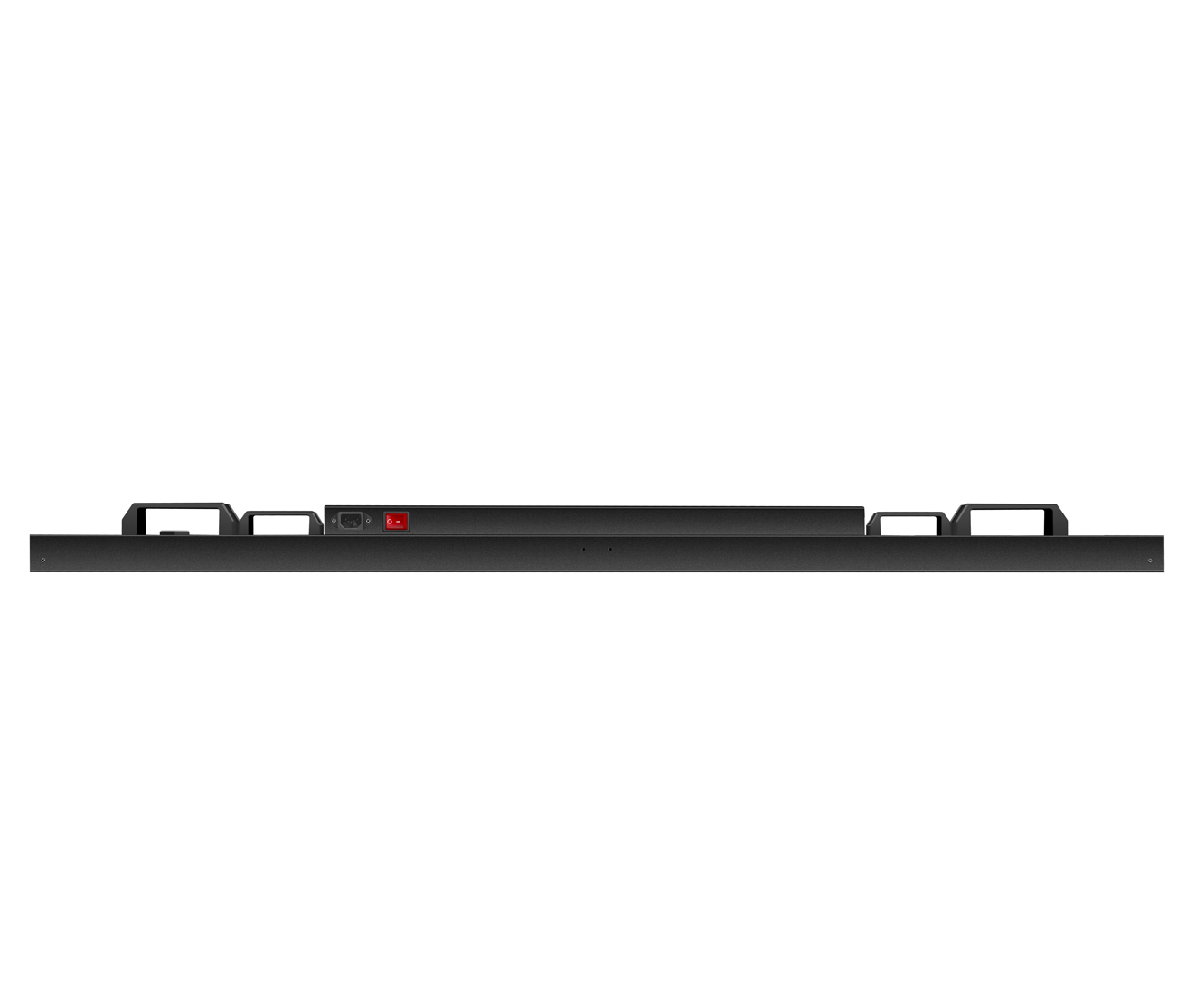

  • ENVIRONMENT & POWER

    Operation Temperature
    (w/o Direct Sunlight)
    32°F to 104°F/0°C to 40°C
    Operation Temperature
    (Direct Sunlight)
    32°F to 86°F/0°C to 30°C
    Operation Humidity
    10% to 80%
    Power Supply
    100-240Vac, 50/60Hz
    Power Type
    Built-In Power
    Surface Panel Temperature
    110°C
    Power Consumption
    120W (Max.)

  • COMPUTER

    Media Formats
    Video (MPG, AVI, MP4, RM, RMVB, TS)
    Audio (MP3, WMA)
    Image (JPG, GIF, BMP, PNG)
    Media Resolution
    1920x1080/1080x1920
    CPU
    Quad-Core ARM Cortex A17, 1.6GHz
    GPU
    Quad-Core ARM Mali-T764
    USB
    1 x USB (OTG/HOST)
    1 x USB (HOST)
    LAN
    100M/1000M Ethernet
    (Network Version Only)
    Wi-Fi
    802.11b/g/n
    (Network Version Screen Only)
    RAM
    DDR3 2GB
    OS
    Android 7.1
    Graphic Engine
    OpenGL ES 1.1/2.0/3.0/3.1
    OpenCL 1.1
    Renderscript, Direct3D 11.1

  • ACCESSORIES

    Included
    Remote Control
    User Manual
    Optional
    Wall Mount
    Floor Stand/Trolley
    Ceiling Mount
    Table Stand

  • WARRANTY & OTHER

    Warranty
    3 Year Limited
    CE (Regulatory)
    Yes
    FCC (Regulatory)
    Class "A"
    UKCA
    Yes
    Rohs (Environmental)
    Yes
