High Brightness LCD Panel

Deliver Clearly Sunlight Readable Screen Outdoors,

Even In Direct Sunlight

Home
>>
PRODUCT
>>
LCD MODULE
>>
HIGH BRIGHTNESS LCD PANEL

HIGH BRIGHTNESS LCD PANEL

• IPS LCD Panel
• Visible Under Direct Sunlight
• Blackening Effect Free (High Tni 110° C)
• Visible with Polarized Sunglasses (QWP Front Pol.)
• Brightness Auto Adjustment with Ambient Light Sensor
• Standard VESA mounting hole
• 24/7

Size

Brightness

  • 1500cd/m²
  • 2000cd/m²
  • 2500cd/m²
  • 3000cd/m²
  • 3500cd/m²
  • 4000cd/m²
  • 5000cd/m²
INQUIRY TO BUY
Download Information

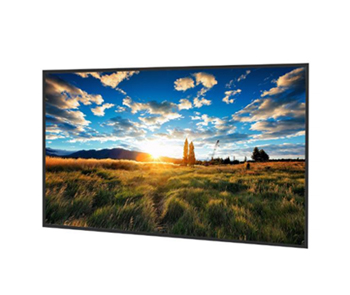

HIGH BRIGHTNESS LCD PANEL

Product Feature

HB-D Series

Find the Screen That's Right for Your Business.



Not sure which LCD screen best suits your area or your business? Our expert customer service representatives are ready to answer any of your questions. If you require more technical information about a particular product or want to know which is right for your business, call us at +86 181 5279 4213. You also can live chat with one of our representatives at any time. Moreover, we offer secure checkout 24-hours a day, 7 days a week.

Specs

  • Panel

    Model No.
    HB320D25I01
    Diagonal Size
    32Inch
    Luminance
    2500 cd/m² Typ.
    Luminance (Optional)
    1500 cd/m² ~ 5000 cd/m²
    Blackening Effect Free
    High Tni 110°C
    Resolution
    1920(RGB)×1080, FHD 69PPI
    Active Area
    698.4(W)×392.85(H) mm
    Viewing Angle
    89/89/89/89 (Typ.)(CR≥10)
    Landscape/Portrait
    Yes/Yes
    Good View at
    Symmetry
    Color Depth
    16.7M 70% NTSC
    Refresh Rate
    60Hz
    Signal Type
    LVDS (2 ch, 8-bit) , 51 pins Connector
    Panel Type
    a-Si TFT-LCD, LCM
    Pixel Format
    RGBW Vertical Stripe
    Treatment
    Hard coating (2H), Reflection 1.5% (Typ.)
    Contrast Ratio
    1000 : 1 (Typ.) (TM)
    Work Mode
    S-IPS, Normally Black, Transmissive
    Response
    6 (Typ.)(G to G) ms
    Aspect Ratio
    16:9 (H:V)
    Orientation
    Landscape / Portrait
    Auto Brightness Mode
    Yes
    Adj Brightness Mode
    Yes, Optional
    PWM Brightness Mode
    Yes, Optional
    Operation Time
    24/7

  • Physical Dimension

    Bezel Color
    Black
    Bezel Width
    14.8/14.8/14.8/19.8mm
    Panel Dimension
    731.9 x 431.4 x 51.5 mm
    VESA Mounting
    380 x 311 mm 8xM4
    Set Weight
    4.5 kgs (Typ.)/ 4.9 kgs(Max
    Package Type
    12pcs/plt
    Package Dimension
    82 x 70 x 62cm
    Package Weight
    65kgs

  • Backlight Details

    Lamp Type
    WLED
    Direct LED
    Yes
    Life time
    60K hours
    With LED Driver
    Yes

  • Environment

    Operating Temp.
    0 ~ 50 °C
    Storage Temp.
    -20 ~ 60 °C

  • Warranty & Others

    Warranty
    24 Months
    Acessories (Optional)
    LVDS Cable, Backlight Cable
    Ambient Light Sensor
    Yes

  • LED Driver

    Input Voltage
    24.0±1.2V
    Input Current
    3.34 Adc
    Consumption
    80W
